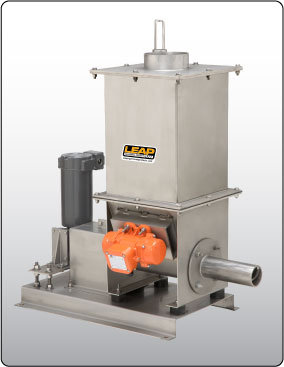

Screw Feeder

Specifications

  • Stainless steel construction
  • 90 V, ½ HP, TENV, DC Motor
  • Speed reducer with 60 RPM output
  • Standard conditioning screw
  • Heavy duty 120V vibrator
  • Shaft less screw suitable for heavy load and sticky products
  • Low speed for greater precision
  • Heavy duty isolators
  • 1 cu ft hopper
  • Direct drive guard

Options

  • 120 V control panel with 4-20 mA input and face mounted potentiometer. Auto-manual-off modes
  • Explosion proof construction
  • Pneumatic vibrator
  • Load cells

Selection Table

In Inches (mm) Maximum Feed Rates
(Note: Typical Turndown is 20 to 1)
Screw Diameter A
Feed Tube Diameter
B
Feed Tube Length
CU FT/HR CU M/HR
1 (25) 1 1/2 (38) 6 1/4 (159) 2 0.07
1 1/2 (38) 2 (51) 6 1/4 (159) 6.2 0.14
2 (51) 2 1/2 (63) 6 1/4 (159) 16.1 0.42
3 (76) 3 1/2 (89) 12 (305) 51.8 1.4

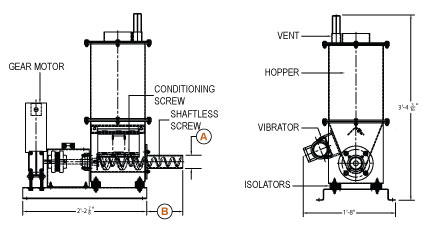

Shema

Documents

Word documentProduct Specification

Autocad documentDrawing - AutoCAD PDF documentDrawing - PDF Data sheetData Sheet

Word documentO&M Manual

Screw Feeder

Price List

Model Screw Diameter Price
SF 1 1 (25) $12 580
SF 1.5 1 1/2 (38) Call Factory
SF 2 2 (51) $12 580
SF 3 3 (76) $12 580
