Conveying eductors

Operation principle

Conveying eductors enable the use of low pressure air to be used to move powders, pellets, and bulk solids with no moving parts. Conveying eductors have a major advantage over rotary airlocks.

  • No maintenance as there are no moving parts
  • No blow-back, dry bulk is actually sucked into the line
  • Very little product degradation as there is no mechanical shearing
Shéma éducteur

Specifications

  • No moving parts
  • Low cost
  • Heavy duty construction

Options

  • Stainless steel construction

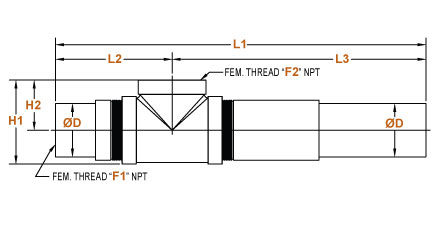

Dimensions

In Inches
Model L1 L2 L3 H1 H2 F1 F2 øD (Pipe) øD (Tube)
E20 14,21 4,88 9,32 3,59 2,25 1 1/2 2 2,375 2
E25 17,86 6,09 11,77 4,3 2,69 2 2 1/2 2,875 2,5
E30 21,23 6,91 14,31 5,09 3,13 2 1/2 3 3,5 3
E40 27,21 8,73 18,5 6,28 3,75 3 4 4,5 4
E50 34,34 10,59 23,75 7,63 4,5 4 5 5,563 5
E60 40,29 12,32 28,17 8,85 5,13 5 6 6,625 6
Shema

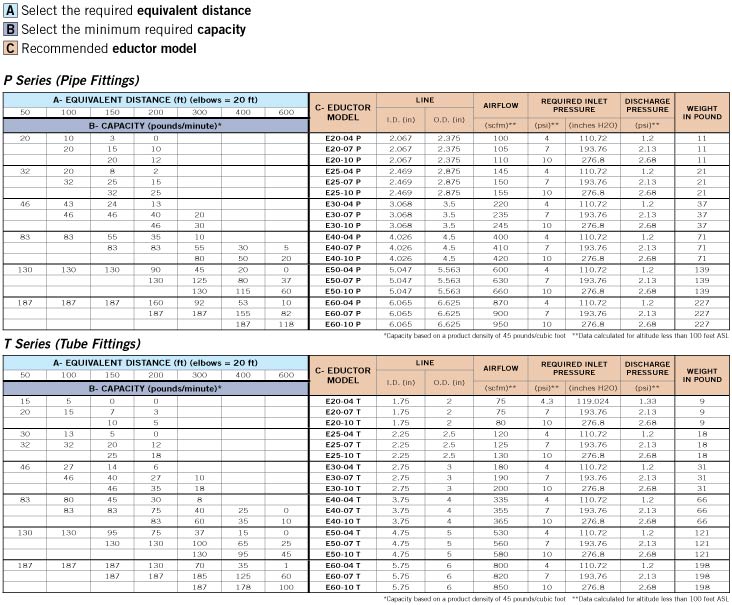

Selection Chart

Click here to enlarge the selection charts.
Eductor

P Series Eductor Price List

Click here for T Series (Tube)
Model Carbon Steel Stainless Steel
E20 $1,368.00 $1,906.00
E25 $1,790.00 $2,468.00
E30 $2,590,00 $4,307.00
E40 $3,293,00 $5,725.00
E50 $3,898.00 $7,485.00
E60 $6,294.00 $9,355.00
* Call Factory

Blower Price List

Blower Model Price
RB-50-7AU *
3M-AP200 *
RB60-6AU *
4M-AP250 *
5M-BP400 *
HB-939 *
6M-BP500 *
6M-CP500 *
7M-CP600 *
* Call Factory

Enclosure Price List

Acoustical Enclosure Model Price
CIA100V *
CIA100 *
CIB100V *
CIB100 *
CIC100V *
CIC100 *
* Call Factory
Selection Chart

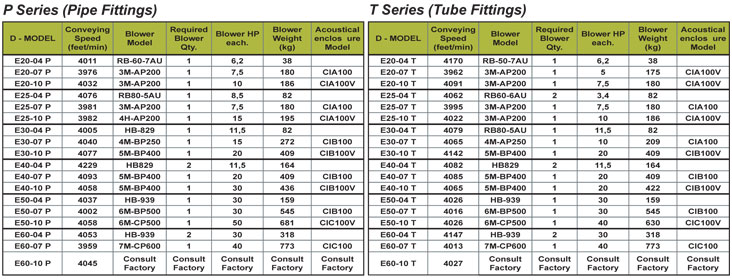

Blower and Acoustical Enclosure Selection Chart

Blower and Acoustical
